Description
Technical Bulletin
Label
Specialy Designed from Chemically Treated Wire to PREVENT from SALTY weather .
LABEL PROPERTY

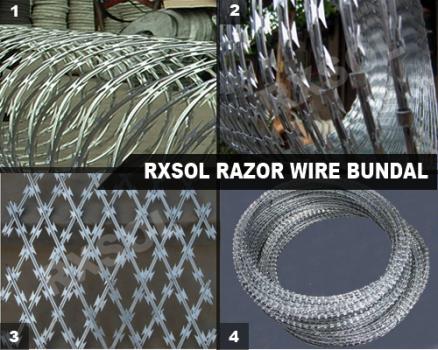

single wire high density RAZOR wire
Thickness of main wire : 3.05mm+/-0.05mm
Thickness of RAZOR : 2.03mm+/-0.05mm
Points : Sharp BLADE Points
Length of points : 25mm+/- 1mm
Main wire, Galvanized coating weight : 140 – 180 grams par m2
RAZOR BLADE, Galvanized coating wt : 30 – 50 grams par m2
Main wire, tensile strength : 140kgs/m2 density
Barbed wire, tensile strangth : 30 – 50kgs/m2 density
Distance batween RAZOR( pointes) : 50mm+/- 3mm
Length of main wire : 640 Feet
Length of Roll, when unrolled : 12 meters
Weight of roll : about 20 kgs +/ – 1kg
Diameter of roll : 1mtr + / – 10 cm or 700 mm
Number of spiral turn : 70 turns in each roll
