Description
Technical Bulletin
Description : Loss Circulation Material (LCM) mica products an excellent choice for the oil and natural gas drilling mud and field services industries.
Application : Used in the Loss Circulation applications during drilling operations.
* RXSOL LCM Mica products can be used in both oil and water-based drilling muds to prevent loss of circulation. Our mica can be used in horizontal , directional and veritcal drilling applications where it aides in sealing loss circulation zones with its flakey, flat structure and increases borehold stability.
* Secondary but significant benefits of LCM Mica include improved sample recovery, formation pressure control, cuttings dropped more easily in a surface disposal area, minimization of drilling fluid losses into formations and reduction of wear and corrosion on the drilling equipment.
Advantage :
* Chemically inert except to hydrofluoric and concentrated sulfuric acids
* Used to treat all forms of loss circulation
*Flat, flakey structure aides in lubrication
*Compatible with other LCM products
*Effective low cost LCM
U.S.S. # 14……………………………………………………..<1.0%
Below U.S.S. #100 in Pan……………………………….30.0%
TYPICAL PHYSICAL/CHEMICAL PROPERTIES
Bulk Density…………………………………………………..68 lbs./cu.ft.
U.S.S. # 6…………………………………………….<1.0%
Below U.S.S. #100 in Pan………………………………..20.0%
TYPICAL PHYSICAL/CHEMICAL PROPERTIES
Bulk Density………………………………………….70 lbs./cu.ft.
Loss on Ignition………………………………………1.5 – 2.5
Percent Moisture………………………………….. …2% max
Specific Gravity………………………………………2.75
pH……………………………………………… ………..8.0
Moh's Hardness……………………………………2.5
Stable, virtually inert except to hydrofluoric and concentrated sulfuric acid.
Impervious to water and atmosphere.Unaffected by exposure to extended low and high temperatures.
TYPICAL CHEMICAL ANALYSIS
Silica (SiO2)……………………………………..64.7%
Alumina (Al2O3)………………………………16.3%
Iron (Fe2O3)………………………………. …..2.6%
Iron (FeO)…………………………………………0.8%
Soda (Na2O)………………………………. ….1.4%
Potash (K2O)……………………………………4.6%
Calcium (CaO)…………………………………0.3%
Magnesium (MgO)……………………………5.5%

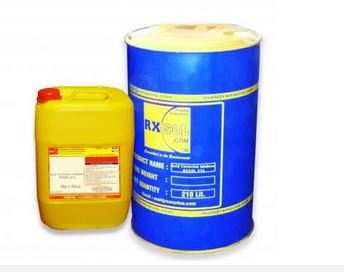

Packing : 25 Kgs
