Description
Technical Bulletin
Label

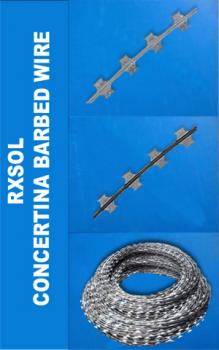

single wire high density Barbed wire
Thickness of main wire :…………………………………………………… 3.05mm+/-0.05mm
Thickness of Barbed wire :………………………………………………… 2.03mm+/-0.05mm
Points : ………………………………………………………………………. 4 Points
Length of points :…………………………………………………………… 15mm+/- 1mm
Main wire, Galvanized coating weight :………………………………… 140 – 180 grams par m2
Barbed wire, Galvanized coating wt :…………………………………… 30 – 50 grams par m2
Main wire, tensile strenght :……………………………………………… 140kgs/m2 density
Barbed wire, tensile stranght : ………………………………………….. 30 – 50kgs/m2 density
Distance batween barbs ( pointes) : ……………………………………. 64mm+/- 3mm
Length of main wire :………………………………………………………… Approx. 640 feet
Length of Roll, when unrolled : ………………………………………….. 17 meters
Weight of roll : ………………………………………………………………… about 20 kgs +/ – 1kg
Diameter of roll : ………………………………………………………………. 1mtr + / – 10 cm
Number of spiral turn : ………………………………………………………… 70 turns in each roll
Each roll has handle
