Description
RXSOL-50-5005-025 Concentrated liquid neutralising agent for corrosion control in condensate and feed water systems, contain blends of low, medium and high volatility amines that provide great protection and neutralization of acidic gases, such as CO2 throughout a condensate system. Protects boiler surfaces by forming an iron tannate film.
A liquid neutralizing amine used to control corrosion and pH in steam and condensate systems.
Technical Bulletin
Condensate Corrosion Control
(Boiler Systems)
RXSOL-50-5005-025
(Condensnol Amine)
Product Description:-
A water soluble volatile concentrate amine based liquid treated for the really corrosion control and as a neutralizing agent for condensate and feed water systems of industrial and institutional physical plants. Also very good organic oxygen scavenger and very Effective under all operating conditions , Protects boiler surfaces by forming an iron tannate film.
Fields Of Applicaation:-
RXSOL-50-5005-025 is an effective neutralizing type corrosion inhibitor & oxygen scavanger for steam condensation system. And can also be used to protect Boilers /Metals surfaces form corrosion.It removes oxygen efficiently in open feed systems and gives effective corrosion inhibition of boiler/exhaust gas economizer system surfaces . Its Chemical reaction by converting Fe2O3 (rust) to organic iron compound protect further IRON rust reaction .
Operating Process:-
RXSOL-CC72 neutralizes the acid components of feed water.The proportion of RXSOL-50-5005-025 depends upon the Carbon dioxide content of the condensate. Basically RXSOL-50-5005-025 neutralizes the acid contents & maintains the condensate and feed water in the alkaline condition. It also protects copper based metals.
Dosage And Control:-
The necessary amount of RXSOL-50-5005-025 is required or injected as frequently as to maintain the pH of the condensate at the main condensate pump outlet between 8.6-9.5 . The amines pass over with the steam and have the dual function of elevating the pH of the steam/condensate and putting a protective micro film on the system pipe work. Acidic condensate is the result of carbonic acid (H2CO3) being formed as CO2 is released in the steam.Condensate prevents corrosion by carbonic acid on live systems. Its filming properties also reduce corrosion on shut down lines, when moisture and oxygen are present.
Condensate Dosage Parameters:-
|
CONDENSATE pH FROM TESTING |
Standard |
|||
|
Less then 8.3 |
Standard |
Over 9.5 |
||
|
All Boiler groups |
Increase Dosage |
Satisfactory |
Decrease Dosage |
8.3-9.5 |
These are recommended values based on experience and are in no way intended to replace the boiler manufacturer’s specifications or company regulations.
|
Product Properties:– |
|
|
| Appearance | Colorless Liquid-Light Yellow | |
| Density | In g/cm3 at 15°C: 1.0 | |
| Odour | Amine | |
| Flash Ppoint | (PMCC) °: None | |
| pH | Alkaline | |
| Compatibility | ||
| Metal | Avoid Copper, Brass, Aluminum | |
| Rubber | No known effect | |
| Packaging | ORDER NO :-RXSOL-50-5005-025 |
Size (in liters) 25/35 |
Characteristics:-
- Easy to use liquid treatment.
- Neutralizes the acids occurring in the condensate system.
- Less maintenance required. Lower operating costs and increased reliability.
- Volatilizes and carries over with the steam and so is recycled. Dosage is economical and efficient.
- Simple test to determine level of treatment.
- Used for protection of condensate and feed water systems in boiler systems of all pressures.
Precautionary Information:-
RXSOL-50-5005-025 alkaline and the vapors are irritating to eyes and lungs. Avoid contact with eyes and skin. Do not take internally. Observe safety regulations wear Goggles, PVC gloves and Apron when handling Provide ample ventilation Avoid contact with skin in case of contacts wash with cupious amount of water immediately. If eyes are splashed give immediate and prolonged irrigation with clean running water and obtain medical attention.
Not for internal use :-
If swallowed do not induce vomiting give plenty of water or milk and call a doctor immediately.

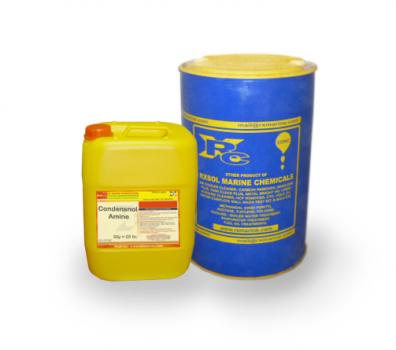

PACKING :-RXSOL-50-5005-025 is available in 25/35 Liters
Packing. GENERAL REMARKS:–Do not store RXSOL-50-5005-025 near a heating equipment.
Label
Condensnol amine – Condensate Control contains volatile low, medium and high volatility amines which helps to neutralising the acidic contaminants pH of the system and keep the whole boiler and condenser system workable in good running condition for future use. Condensate control maintaining favourable environment for metalic parts.
The dosage of condensate control depends on the aggregate carbonic acid content and should be added till the point the pH range is 8.3 to 9. For an average system e. g. 10-M3, the dosage is approximately 0.65 ltr / day. RXSOL-50-5005-025 provide great protection and neutralization of acidic gases, such as CO2 throughout a condensate system.
LABEL PROPERTY
MSDS & Dose : http://rxmarine.com/Condensate-Control-Label
For Direct Help : mail@rxmarine.com
Other Valuable product : Hardness Control, One Shot Liquitrat, Boiler Coagulant, Alkalinity Control, Boiler Sludge Conditioner
Stock Point : Mumbai, Kandla, Chennai, Visakhapatnam, Kolkata, Fujairah
